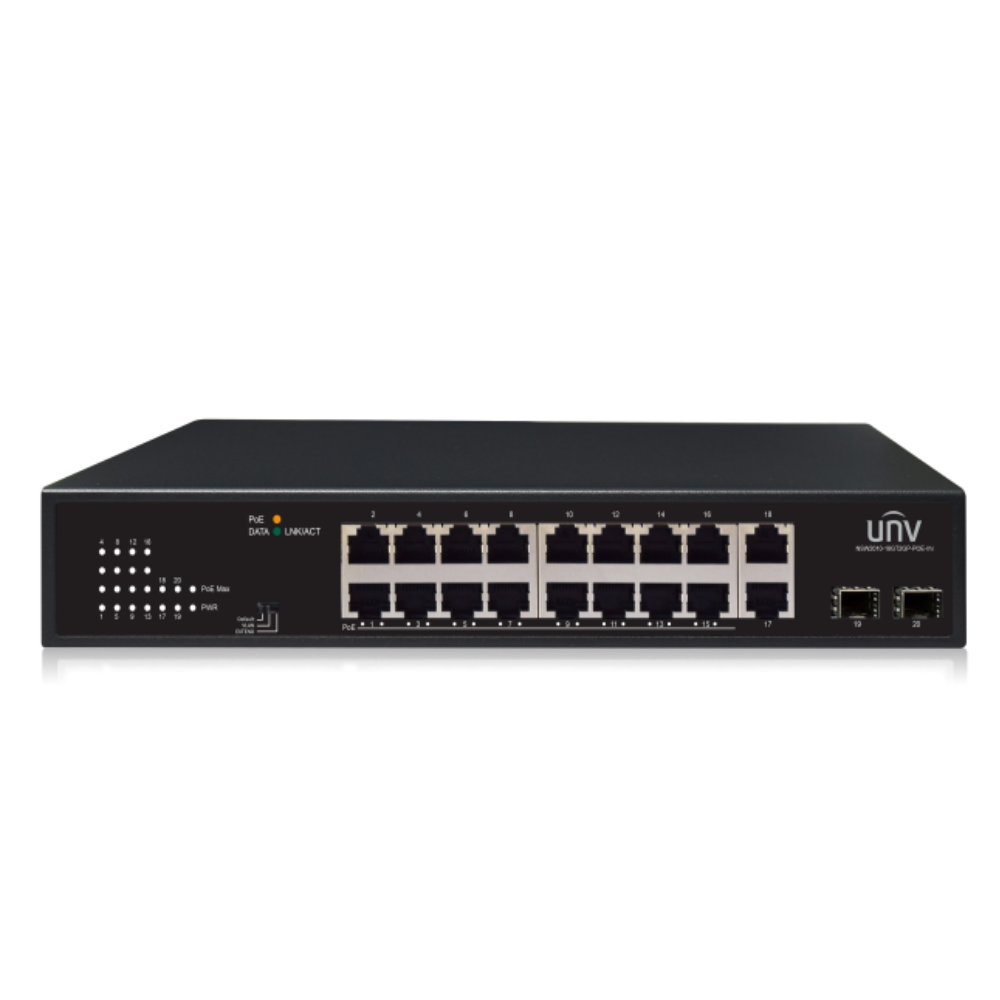

UNV NSW2010-18GT2GP-POE-IN Gigabit Ethernet Switches
– 16x 1000Mbps POE Ports + 2x 1000Mbps Uplink Ports + 2x 1000Mbps Combo Uplink Ports
– Total output power 185 watts
– POE+ (max. 30W per port)
– Can supply POE up to 250 meters (in surveillance mode)
– Switch capacity: 40Gbps, Forwarding Performance: 29.76Mbpps, MAC Address Table: 8K
– 48vDC POE Power
| Technical Specifications | |
| Ports | 16 x 1000Mbps POE ports + 2 x 1000Mbps Uplink + 2 x 1000Mbps Combo Uplink |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3z, IEEE802.3ab |
| Switching Capacity | 40Gbps |
| Forwarding Performance | 29.76Mpps |
| Packet Buffer | 4Mbit |
| MAC Address Table | 8K |
| POE | 802.3at/af |
| Max. PoE Power | Max capacity: 185W Max capacity for single port: 30W |
| Cooling Fans | 1 |
| Working Temperature | 0°C – 40°C |
| Indicator | PWR: Steady on: AC input is normal Off: No AC input PoE: LINK/ACT: Speed: |
| Working Mode | Default (Normal mode) : All ports can communicate with each other. VLAN (Secure mode): Downlink ports can communicate only with uplink ports. EXTEND (Surveillance mode): Transmission distance up to 250 meters. |
| Power Supply | AC: 100-240V, 50/60Hz |
| Weight | <5kg |
| Dimensions (W x D x H) | 2800mm x 180mm x 44mm |
